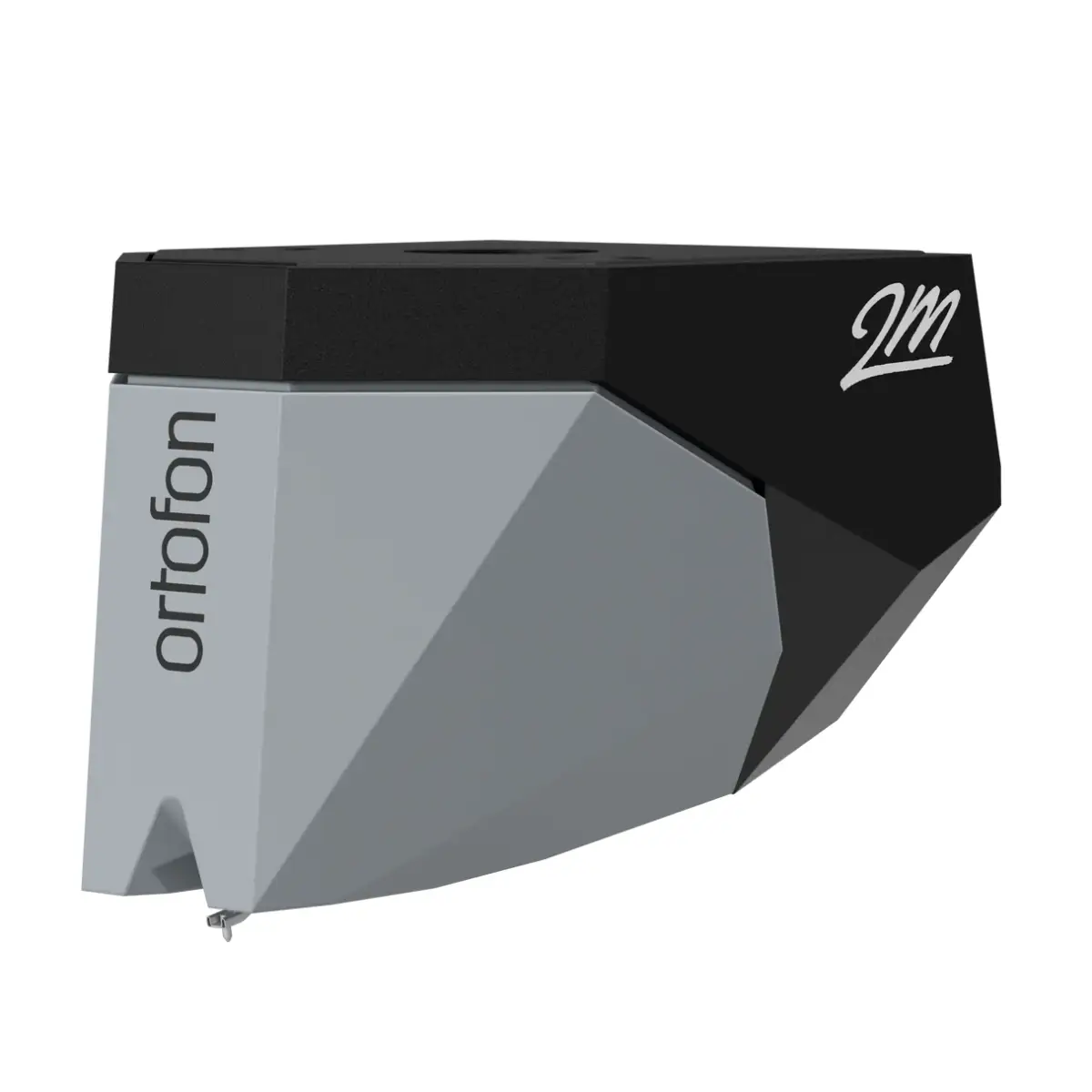

Ortofon 2M 78 MM Phono Cartridge - NEW

Product image 1
Product image 2
Product image 3
Product image 4

Ortofon 2M 78 MM Phono Cartridge - NEW

Ortofon 2M 78 MM Phono Cartridge - NEW

General:

Journey back in time with the 2M 78 Mono Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with unparalleled precision and fidelity.

Stylus

The 2M 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2M 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.

Output

The 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Compatibility

The 2M Series is designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.Specifications:

  • Output voltage at 1 kHz, 5cm/sec
    4 mV
  • Frequency response 20 Hz - 20 kHz
    3 / - 1 dB
  • Tracking ability at 315 Hz
    70 µm
  • Compliance, dynamic, lateral
    18 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Spherical
  • Stylus tip radius
    R 65 µm
  • Tracking force range
    1.6-2.0g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    700 Ohm
  • Cartridge colour
    Black/Grey
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    350 mH
  • Recommended load capacitance
    150-300 pF
